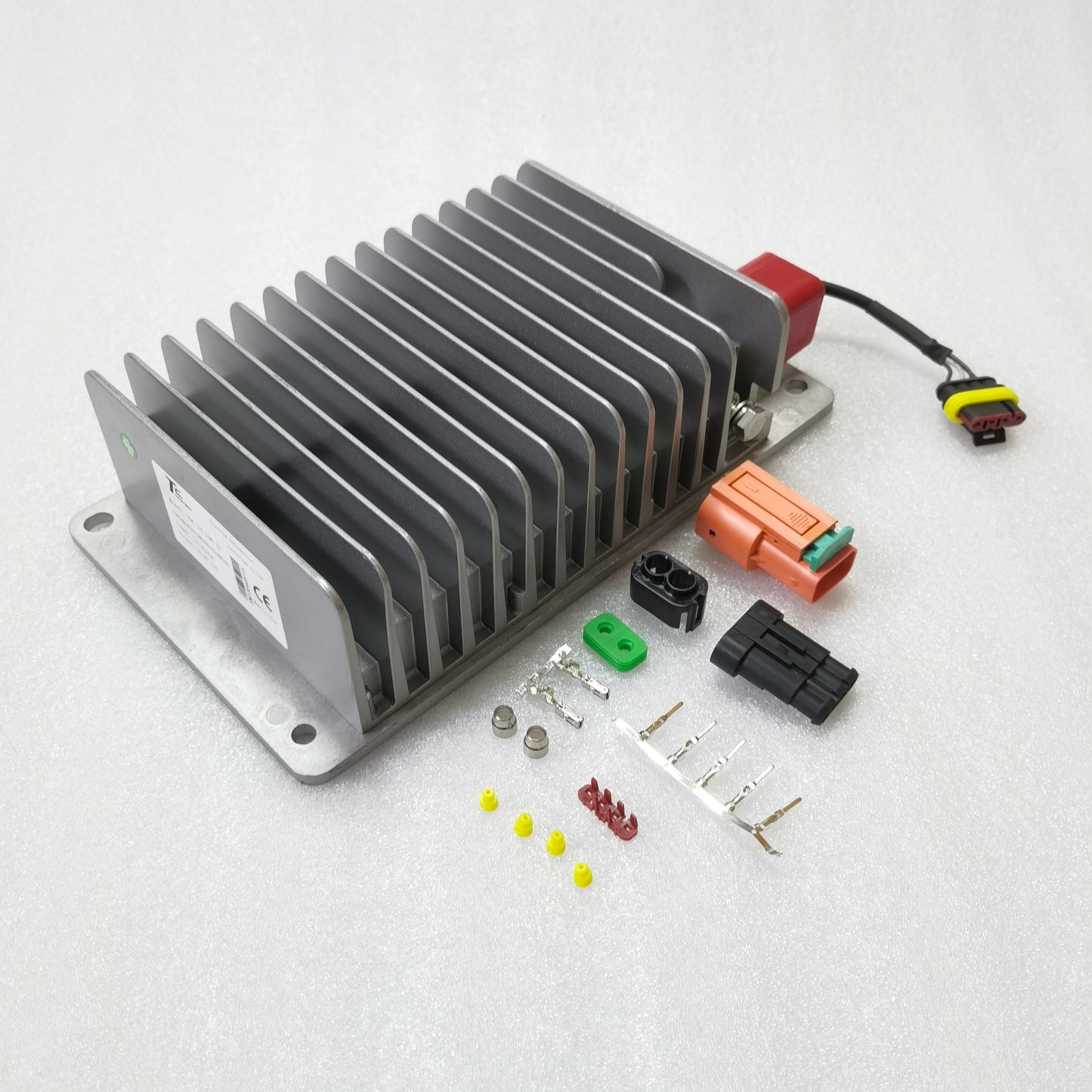

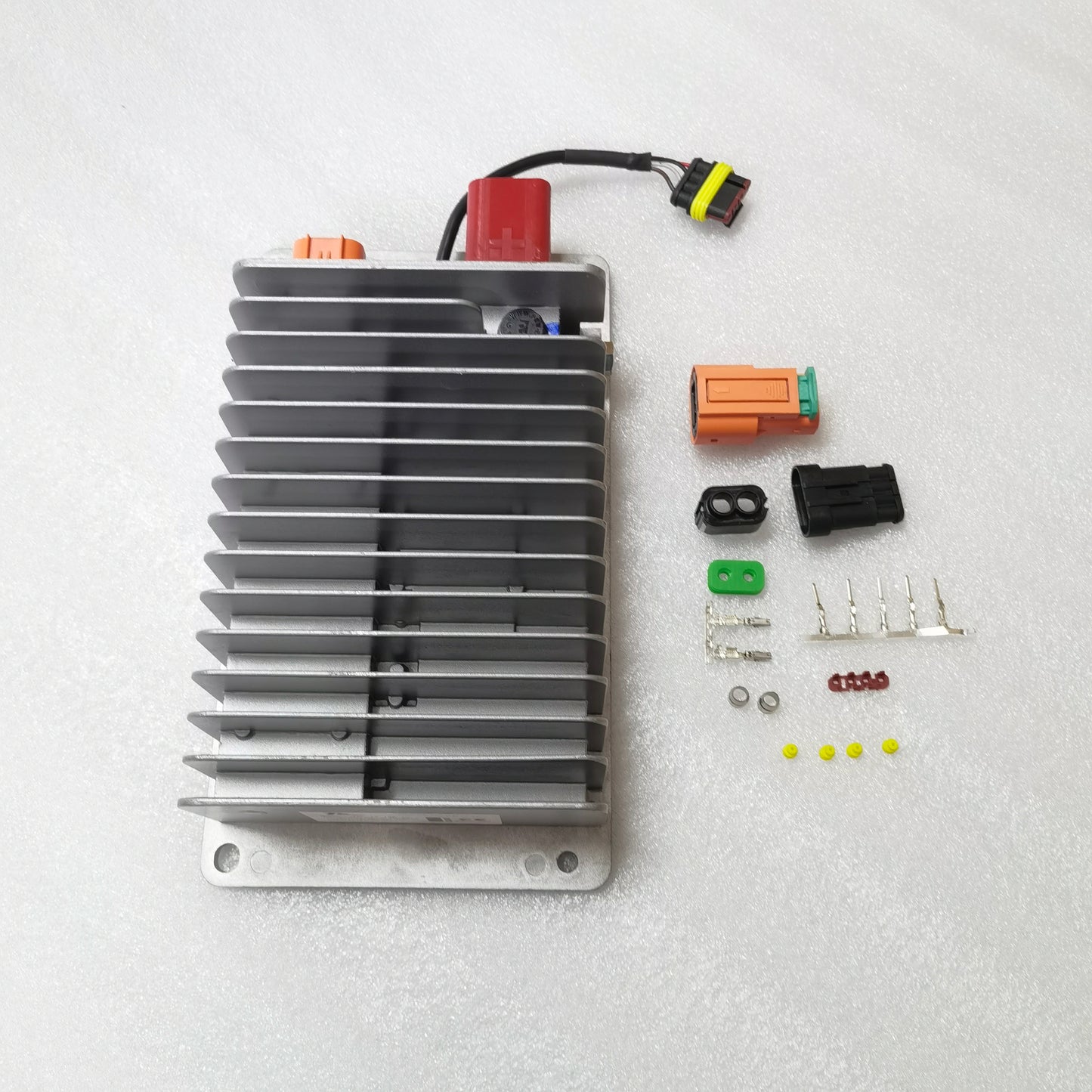

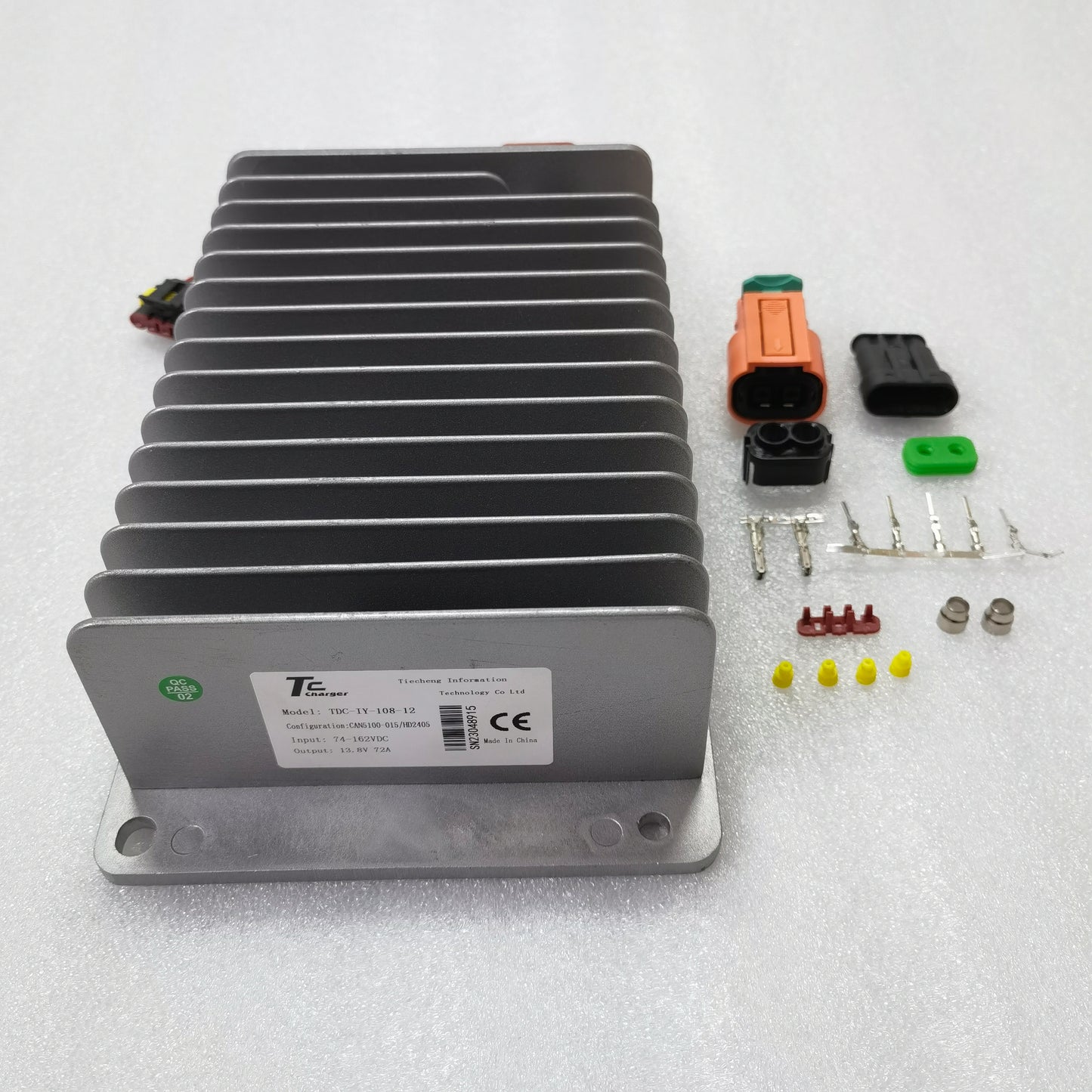

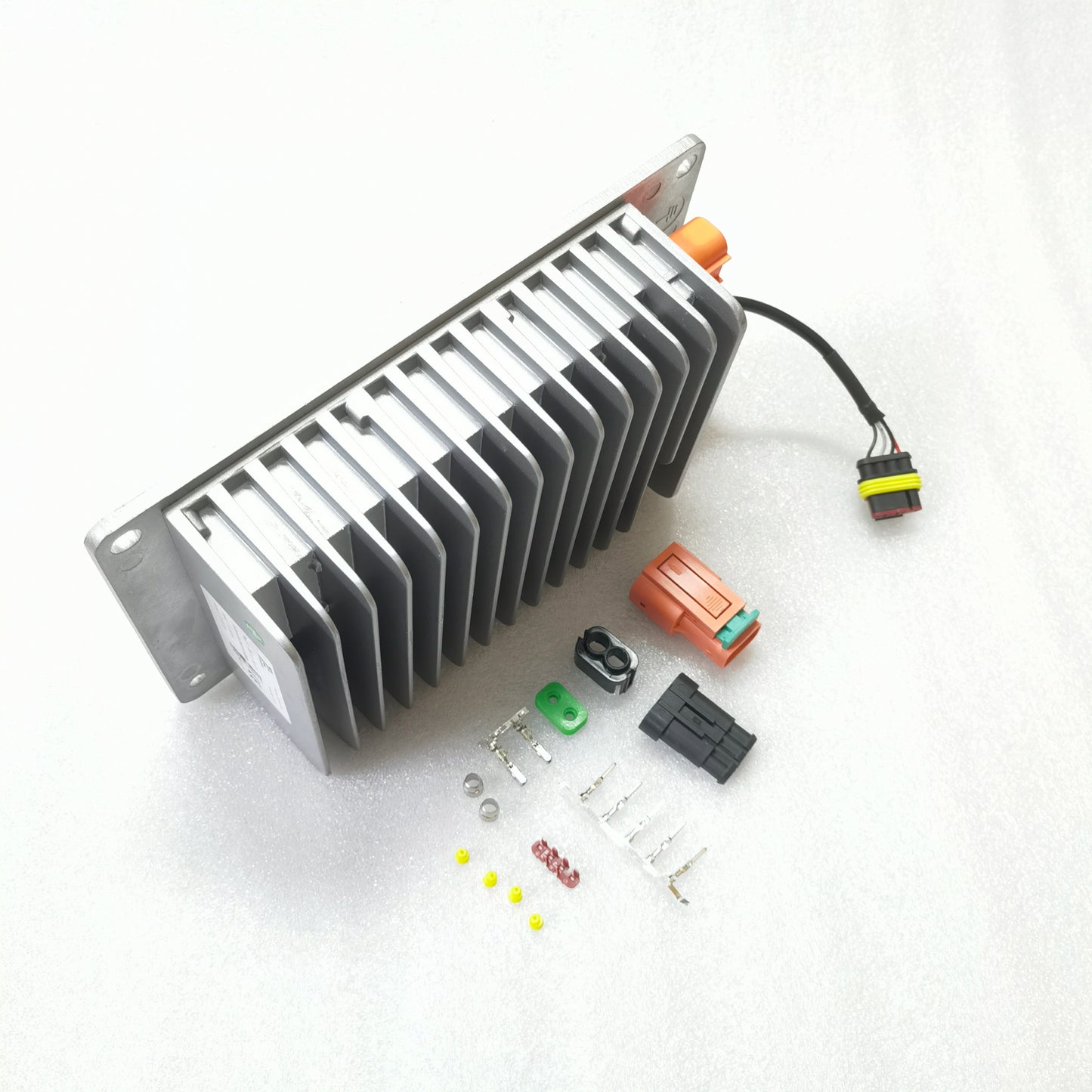

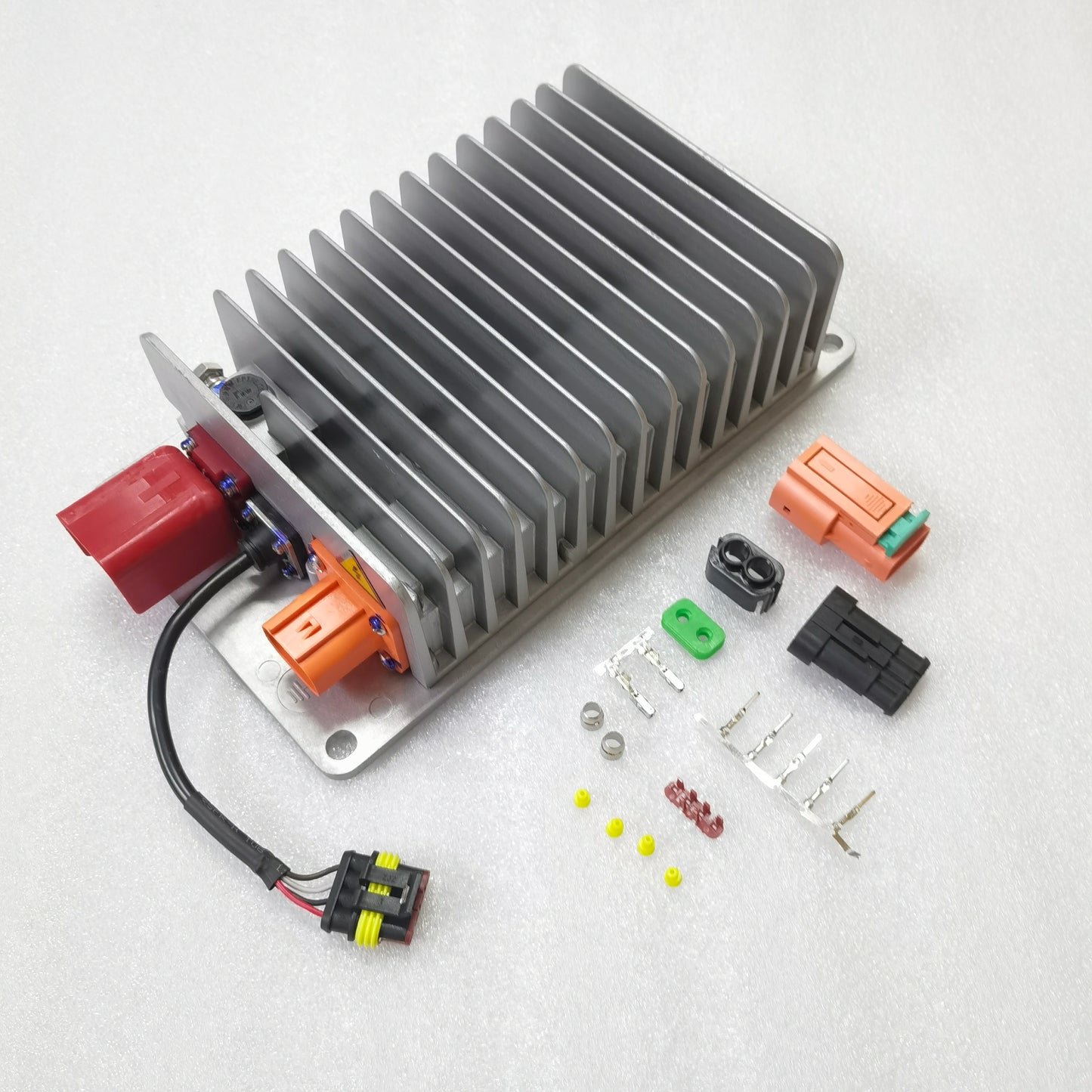

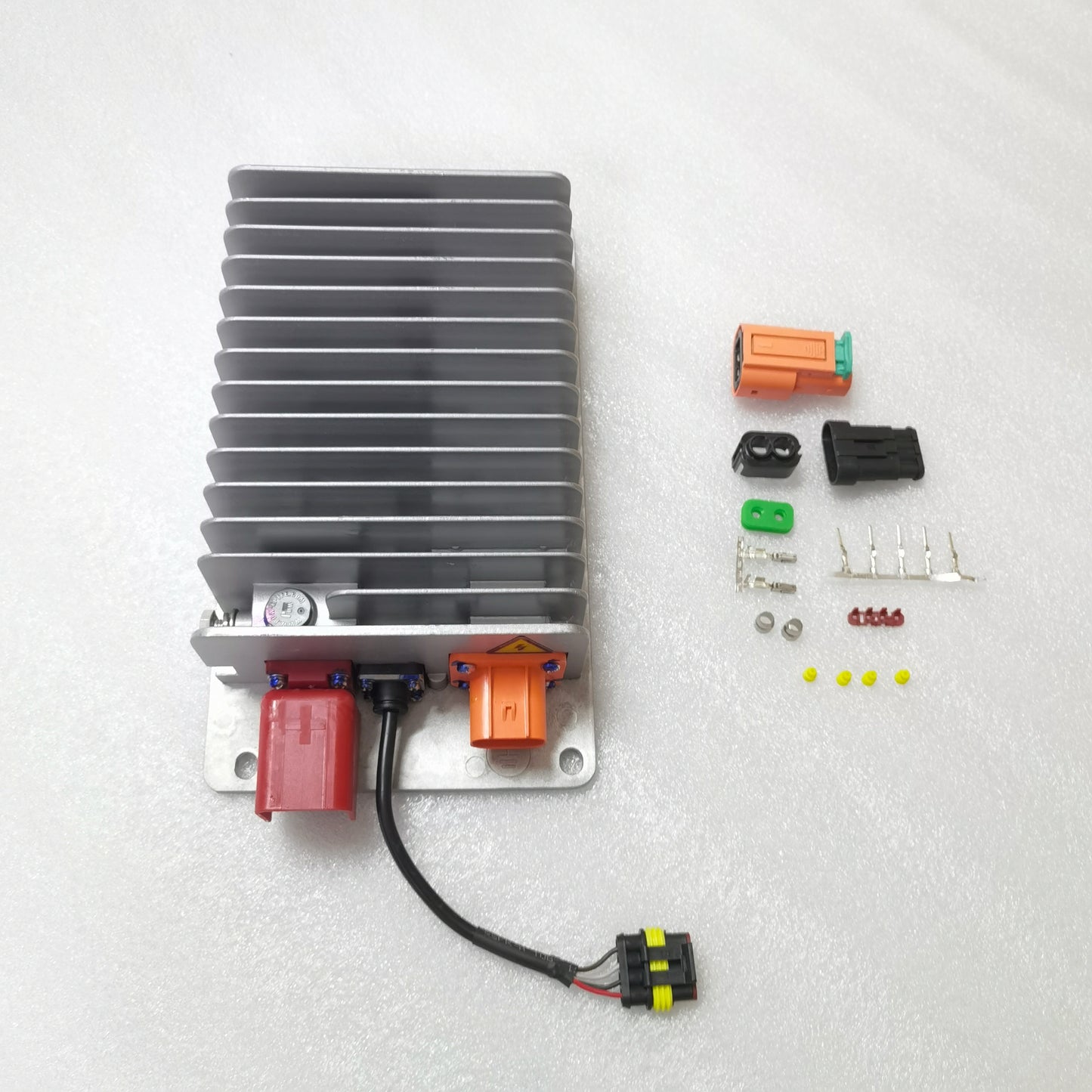

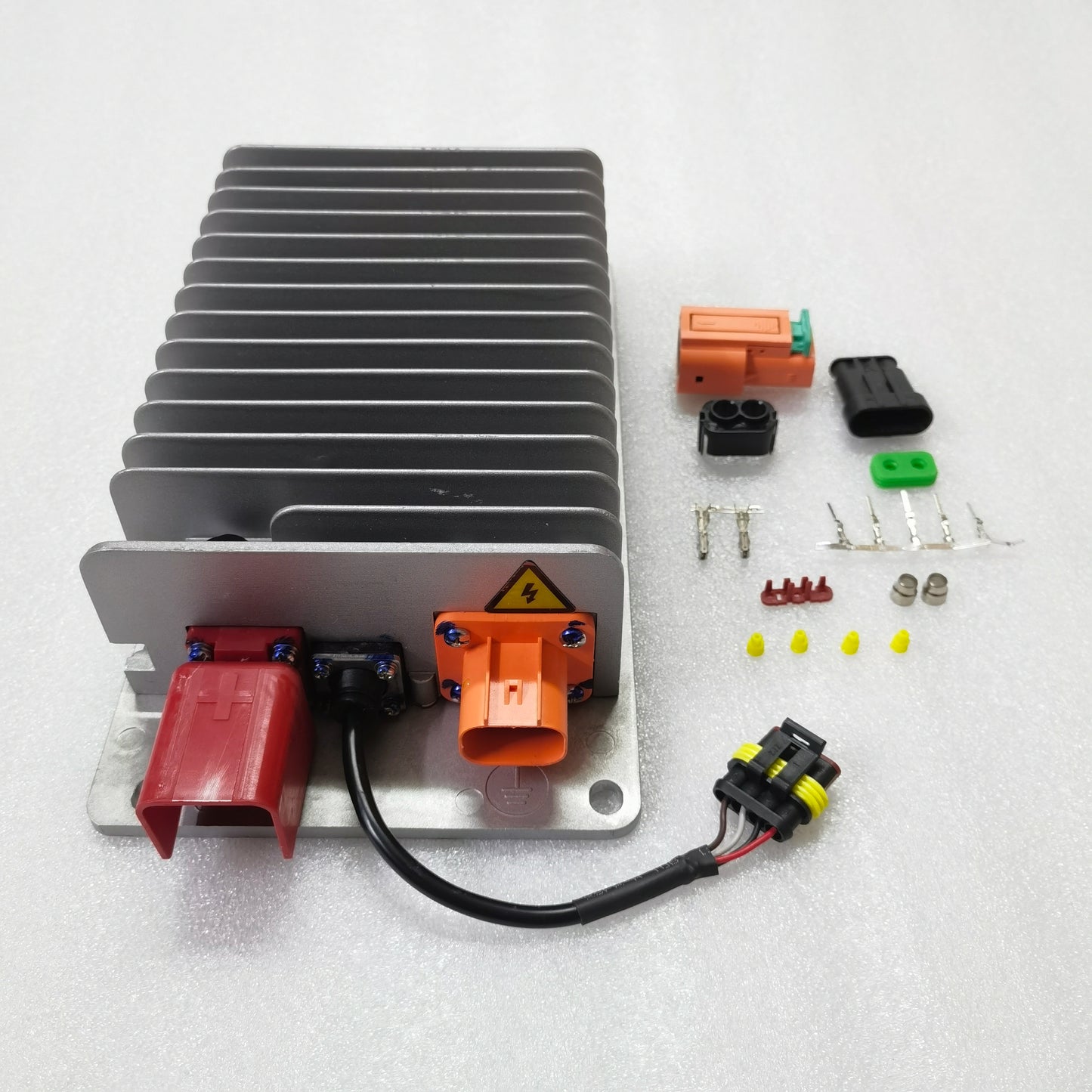

Elcon TC Charger TDC-IY-72-12 DCDC

Basic Specification:

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!

Any questions please contact (deligreencharger@gmail.com）

1. Nominal power：1KW
2.Peak power：1.2KW continuous with 6mins
3. Output voltage and current：13.8V±1%, 72A
4. Efficiency at full loading：≥92%
5. Voltage regulatory：1%
6. Voltage stabilized accuracy：≤1%
7. Current stabilized accuracy：≤2%
8. EMC： meet GB/T 18655-2002

9. Protection grade： IP67
10. Operation temperature：- 40℃～60℃
11. Storage temperature：- 40℃～105℃
12. Control: CAN or Enable
13. Size：45.5(length)x24.5(width)x18(height)（nature-cooling）
14. N.W.：2.7kg
15. Cooling way：naturally-cooling

Safety protection：
Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error
