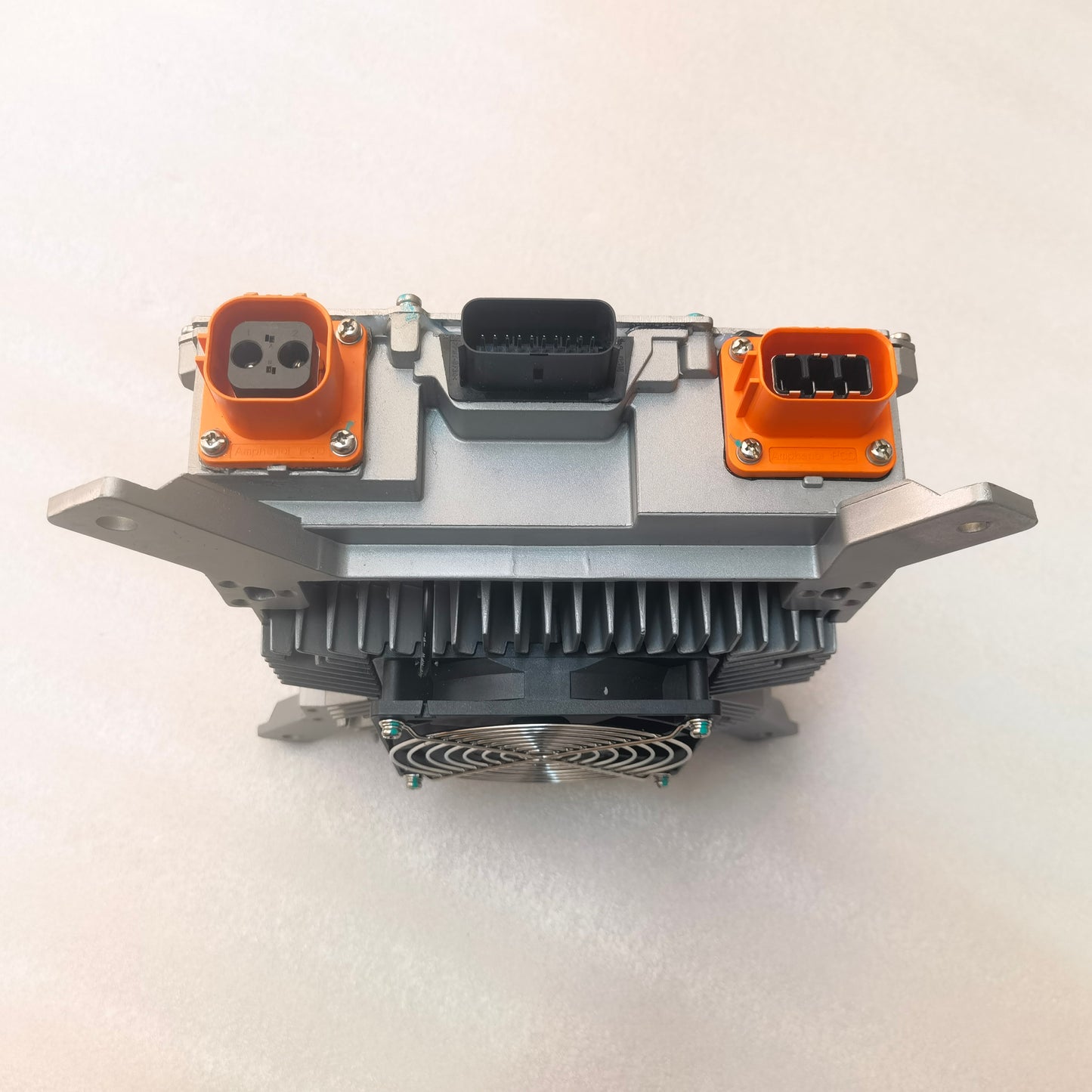

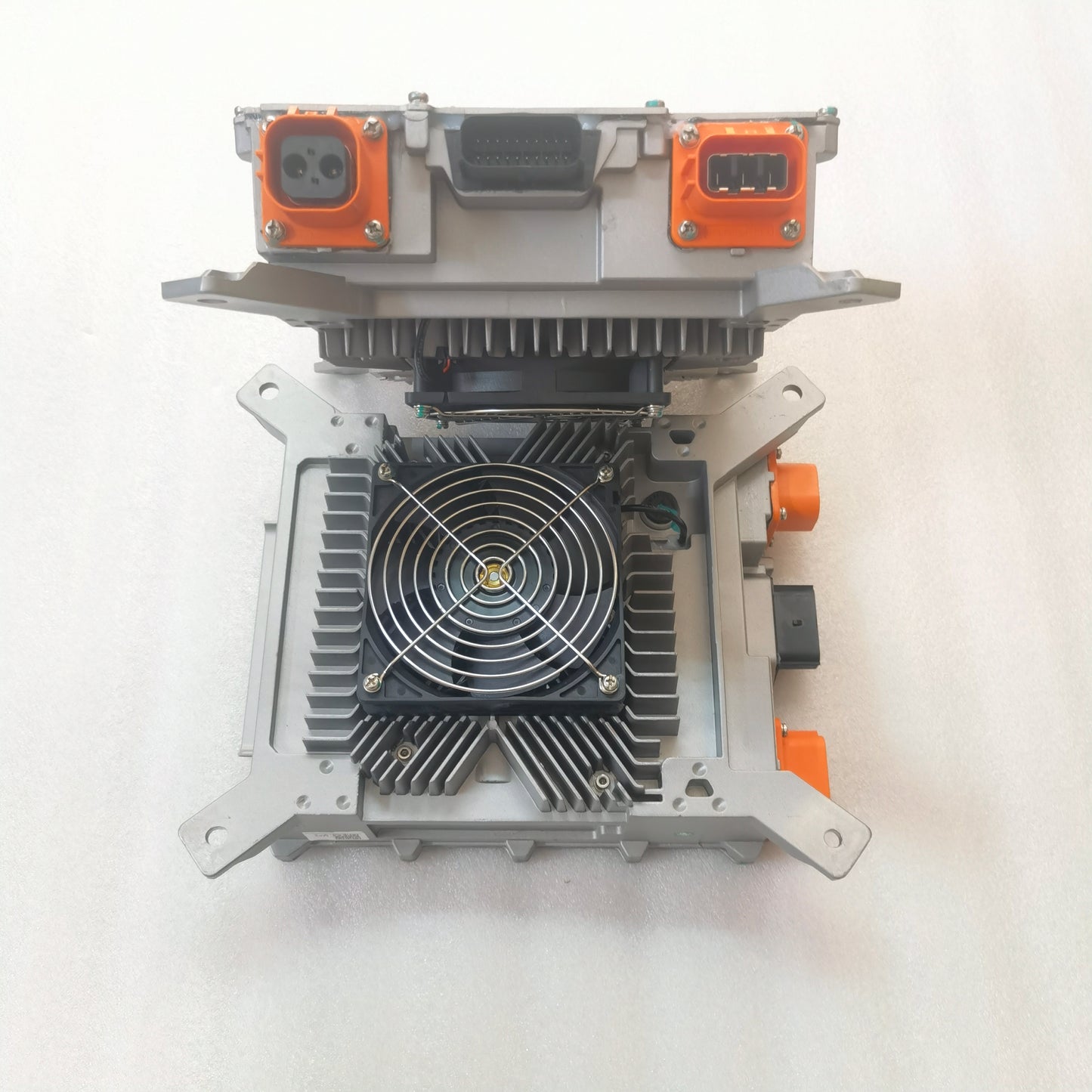

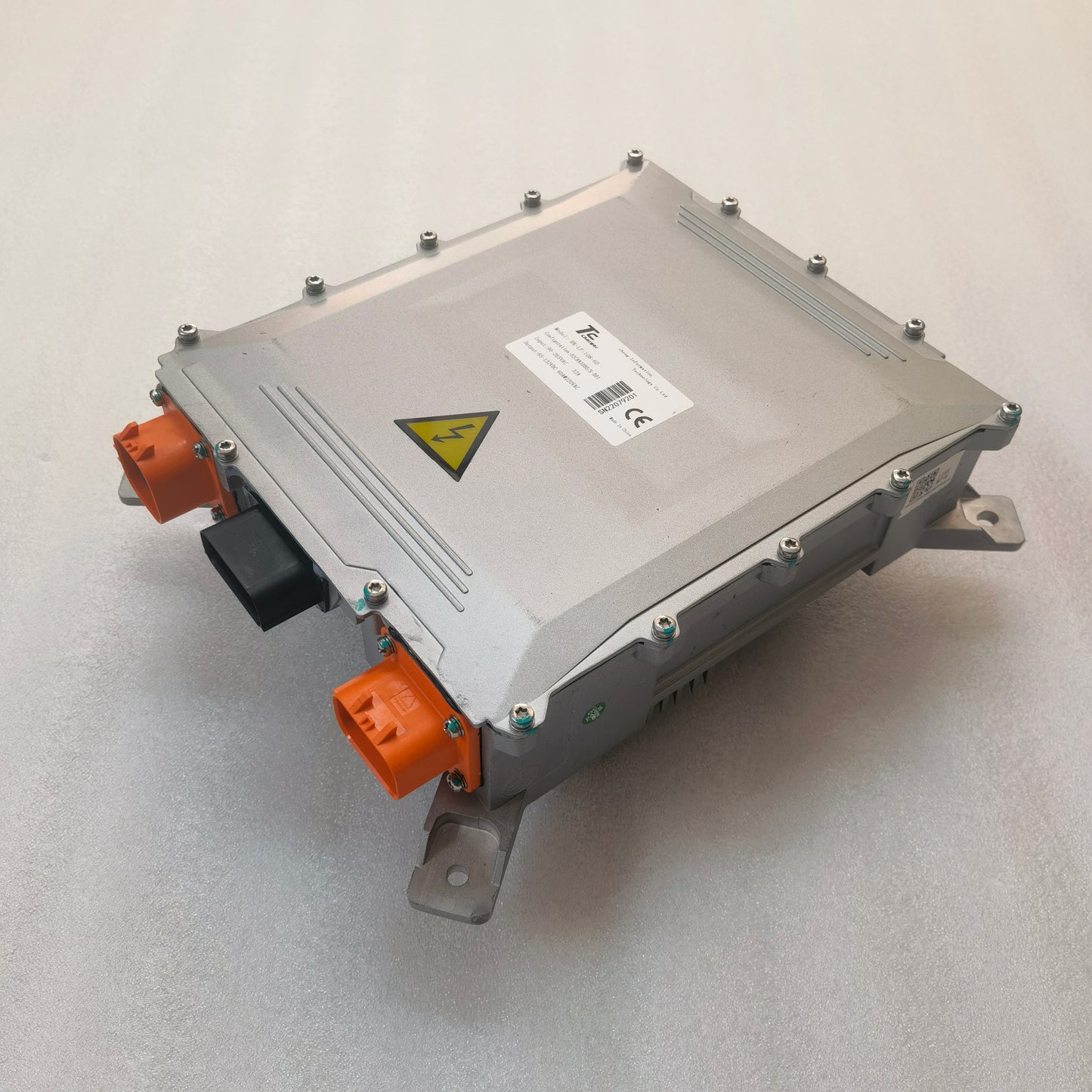

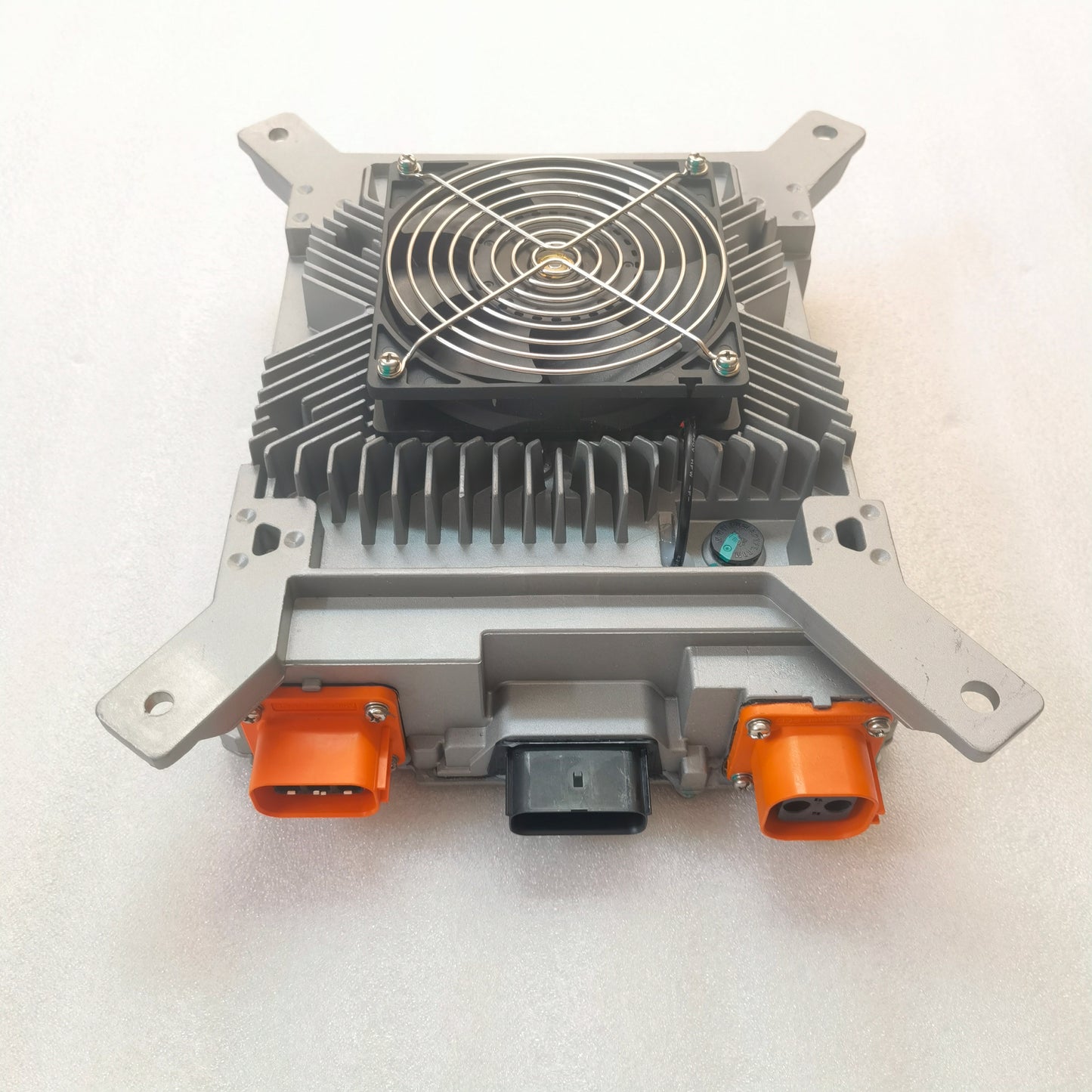

Elcon TC charger HK-LF-540-14 540V Charger

Basic Specification:

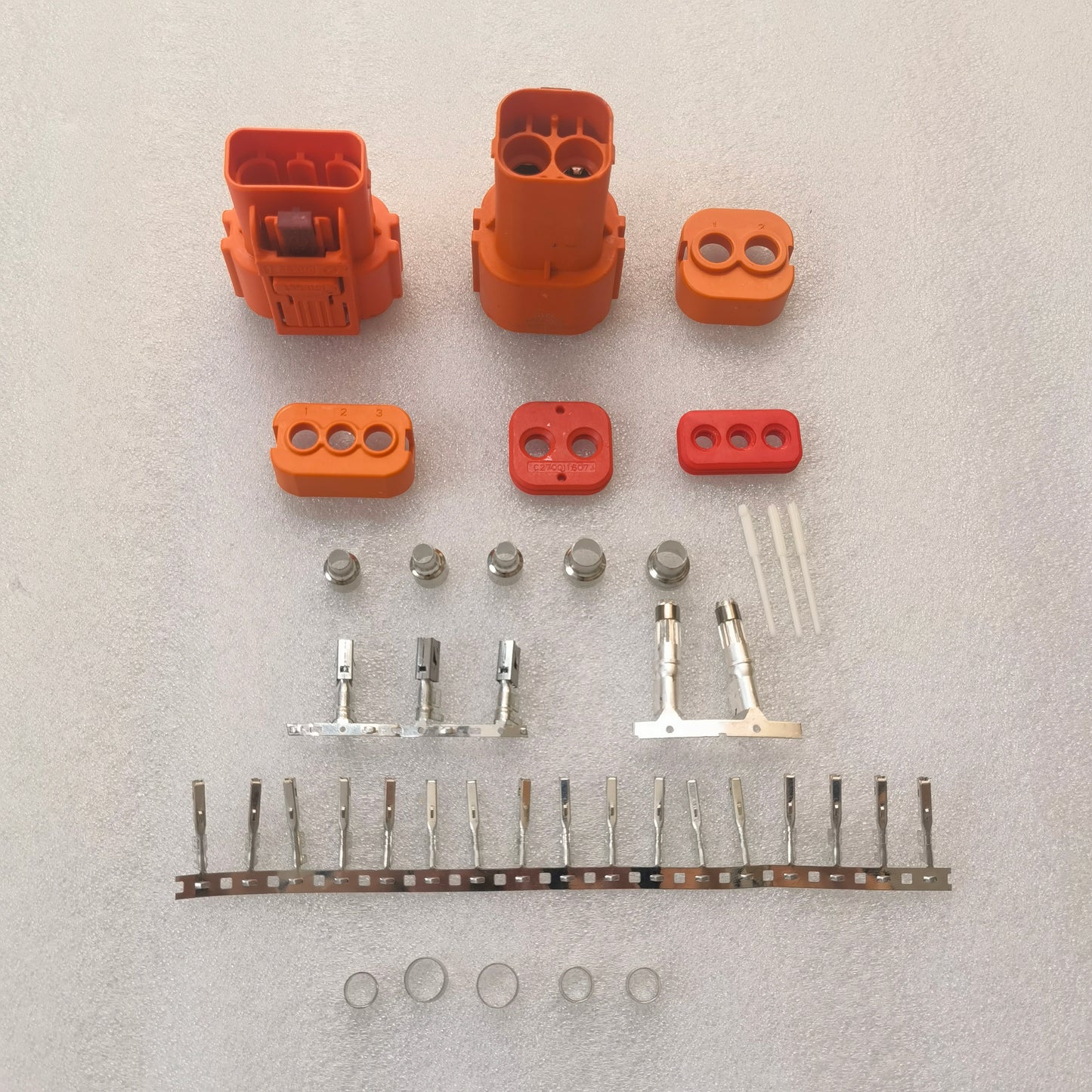

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!

Any questions please contact (deligreencharger@gmail.com）

1. Up to 95% power efficiency and more than 93% Full Load Efficiency
2. Wide input voltage range AC90V~AC264V 45~65 Hz available for worldwide requirements, convenient for electric-network fluctuation and vehicle exportation.
3. Intelligent temperature compensation function in the charging process, preventing damage to the battery caused by charge-off or charge due, greatly extending the lifespan of the battery.
4. Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).
5.Operation temperature：- 40℃～85℃；Storage temperature：- 55℃～85℃；Mechanical impact and vibration grade：QC/T 895－2011，Automotive-grade seismic rating.

6. Temperature control with the built-in heat-sensing device and automatic recovery through thermal protection.
7. Multi-safety protection functions.
8. LED charge status indication with diagnosing support function.
9. Available for various kinds of batteries like LiFePO4, Lithium battery, etc., Flexible and programmable in the charging mode. Equipped with Enable Control(Automatic Control) or CAN communication interface to realize real-time communication with BMS for options.
10. Input current:16A
11. Power factor：≥0.99
12. Charging control: CAN or Enable
13. Size：198(length) x 244(width) x 95(height)(fan-cooled)
14. Weight only 4.6 kg!
15. Cooling way: Enforce Air Cooling
