Quick Summary: Lithium battery internal resistance readings vary due to temperature, state of charge (SOC), cell aging, contact quality, and testing equipment. This guide explains all 7 factors and how to get accurate results for LiFePO4 and other lithium cells.
What Is Lithium Battery Internal Resistance?
Internal resistance refers to the resistance inside the battery when current flows through it. It directly affects:
- Charging efficiency
- Discharging performance
- Heat generation during use
- Voltage drop under load
- Overall battery lifespan
As a general rule: lower internal resistance = better performance, while higher internal resistance = aging or reduced efficiency. For LiFePO4 cells, internal resistance is typically very low and measured in milliohms (mΩ).

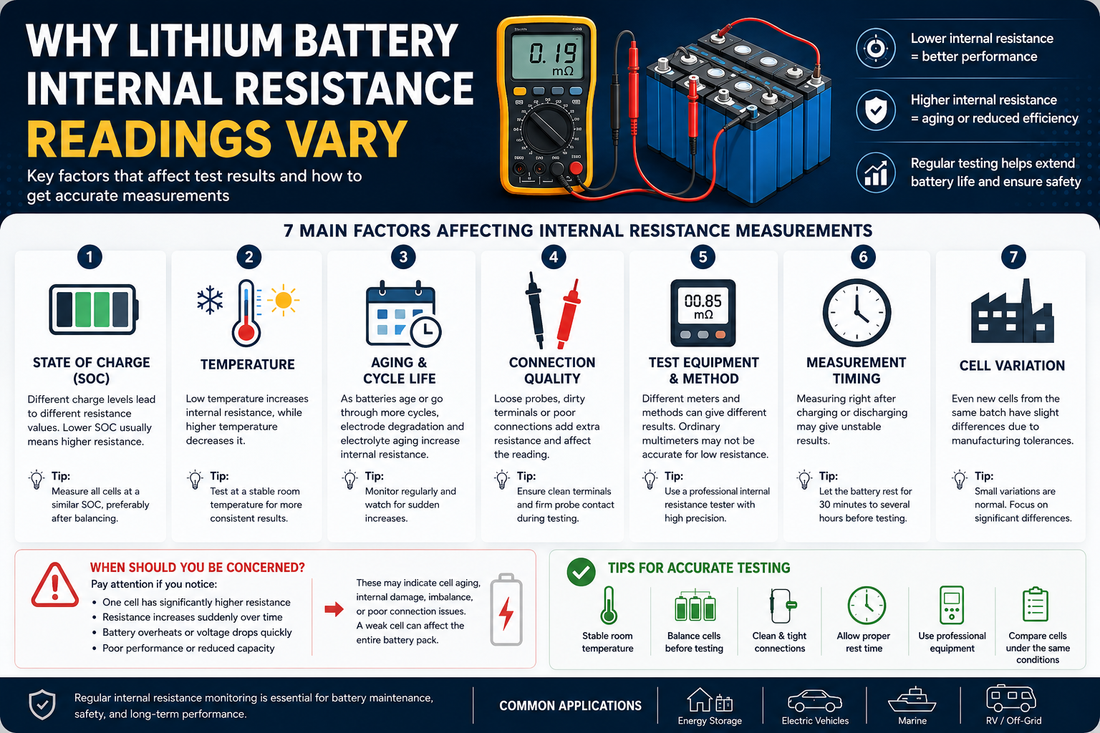

7 Reasons Why Lithium Battery Internal Resistance Readings Differ
1. State of Charge (SOC) Affects Resistance
Battery voltage and charge level have a direct impact on internal resistance. A fully charged cell may show lower resistance, while a low-voltage cell may show higher resistance. If cells are not balanced before testing, readings can vary significantly.
Recommendation: Measure all cells at a similar SOC level, preferably after balancing.
2. Temperature Has a Major Impact on LiFePO4 Cells
Temperature is one of the biggest factors affecting lithium battery internal resistance. Low temperatures slow down lithium ion movement, increasing resistance. High temperatures reduce resistance.
- Battery tested at 10°C → noticeably higher resistance
- Battery tested at 25°C → lower, more accurate baseline reading
Recommendation: Always test batteries at a stable room temperature (around 25°C) for consistent and comparable results.
3. Battery Aging and Cycle Life
As lithium batteries age through charge and discharge cycles, their internal resistance naturally increases. Common causes include electrode degradation, electrolyte aging, and increased internal chemical loss. Older or heavily cycled cells often show higher resistance, faster voltage drop, and more heat during operation.
If one cell shows significantly higher resistance than others, it may indicate cell aging, internal damage, or capacity loss — and should be inspected or replaced.
4. Poor Probe Contact or Loose Connections
Sometimes the issue is not the battery itself, but the testing connection. Loose multimeter probes, oxidized terminals, dirty busbars, or weak clamp pressure can all increase measured resistance. Since lithium battery resistance is extremely low, even small contact resistance can skew results.
Recommendation: Ensure clean terminals and firm probe contact during every test.
5. Testing Equipment Accuracy
Not all meters measure internal resistance accurately. Standard multimeters are designed for general resistance measurement and may not provide precise milliohm readings. Professional battery internal resistance testers use AC injection methods, four-wire measurement technology, and higher precision calibration — resulting in more reliable readings.
Recommendation: Use a dedicated battery internal resistance tester whenever possible for milliohm-level accuracy.
6. Measurement Timing After Charging or Discharging
Testing immediately after charging or discharging may produce unstable results. After heavy current flow, the battery chemistry has not fully stabilized, which can temporarily affect voltage, temperature, and internal resistance readings.
Recommendation: Let the battery rest for at least 30 minutes — ideally several hours — before testing.
7. Manufacturing Tolerance Between Cells
Even brand-new lithium cells from the same production batch are not 100% identical. Small differences in raw materials, electrode coating thickness, and assembly process can cause slight variations in internal resistance. This is completely normal as long as the difference remains small and within the manufacturer's specified tolerance range.
When Should You Be Concerned About High Internal Resistance?
Small resistance differences between cells are normal. However, pay close attention if:
- One cell's resistance is significantly higher than the others
- Resistance suddenly increases over a short period
- The battery heats excessively during charging or discharging
- Voltage drops much faster under load than expected
These symptoms may indicate cell imbalance, aging, internal failure, or poor connection issues. In battery packs, a single weak cell can degrade the performance of the entire system.
Tips for Accurate Internal Resistance Testing
To achieve reliable and repeatable results:
- ✔ Test at stable room temperature (~25°C)
- ✔ Balance cells before measurement
- ✔ Use clean and tight terminal connections
- ✔ Allow batteries to rest before testing
- ✔ Use professional internal resistance testing equipment
- ✔ Compare all cells under the same conditions
FAQ: Lithium Battery Internal Resistance
Q: What is a normal internal resistance for a LiFePO4 cell?
A healthy LiFePO4 cell typically has an internal resistance between 0.1 mΩ and 2 mΩ, depending on cell size and capacity. Values significantly above this range may indicate aging or damage.
Q: Does temperature affect lithium battery internal resistance?
Yes. Cold temperatures increase internal resistance, while warmer temperatures reduce it. Always test at stable room temperature (around 25°C) for consistent results.
Q: How do I reduce internal resistance in a lithium battery?
Ensure clean terminal connections, test at proper SOC, maintain optimal operating temperature, and replace aging cells showing significantly higher resistance than others.
Q: Can a standard multimeter measure lithium battery internal resistance?
Standard multimeters are not accurate enough for milliohm-level measurements. Use a dedicated battery internal resistance tester with AC injection or four-wire measurement for reliable results.
Final Thoughts
Different internal resistance readings in lithium batteries are completely normal in most cases. Factors such as temperature, state of charge, aging, testing method, and connection quality all influence the measurement. Understanding these factors helps you diagnose battery health, identify weak cells early, improve battery pack consistency, and extend overall battery lifespan.
For energy storage systems, EV batteries, and DIY lithium battery projects, regular internal resistance monitoring is an important part of battery maintenance and safety management.
