As winter approaches across Europe and North America, temperatures in garages, sheds, and outdoor utility rooms regularly dip below freezing. If you rely on a Lithium Iron Phosphate (LiFePO4) energy storage system for home solar, off-grid cabins, or mobile backup, one critical question dictates whether your investment lasts 15 years or fails in a single season: can you charge LiFePO4 batteries in the cold?
While LiFePO4 is celebrated for its thermal stability and cycle life, charging below freezing is the single fastest way to destroy prismatic cells permanently. Here is the science behind low-temperature degradation, why standard insulation fails, and how integrated self-heating systems keep your storage running all winter.
The Science: Why Charging Below 0°C (32°F) Causes Permanent Damage
There is a crucial distinction between discharging and charging in winter:
- Discharging in the cold: Most Grade A LiFePO4 cells safely discharge down to -20°C (-4°F), though internal resistance increases and available capacity temporarily drops.
- Charging in the cold: Attempting to charge at temperatures below 0°C (32°F) triggers an irreversible chemical reaction known as lithium plating.
At normal ambient temperatures, lithium ions intercalate smoothly into the graphite anode during charging. Below 0°C, the electrochemical reaction slows drastically, and the anode cannot absorb ions quickly enough. Instead of entering the anode structure, lithium ions accumulate on its surface as pure metallic lithium. Over time, these metallic dendrites pierce the separator, causing micro-shorts, irreversible capacity degradation, and potential thermal runaway.
Why Passive Insulation Is Not Enough
Many DIY builders and installers attempt to protect outdoor battery boxes with styrofoam, rockwool, or neoprene wraps. While thermal insulation delays heat loss, it does not generate heat. During consecutive sub-zero days, ambient cold eventually penetrates the enclosure. Once the core cell temperature reaches 0°C, any incoming solar power on a sunny winter morning poses a direct hazard to the battery bank.
The Two Essential Layers of Winter Protection
1. Smart BMS Low-Temperature Cut-Off
Your battery management system (BMS) must have an active NTC temperature sensor placed directly against the battery cells, programmed to immediately disconnect charging when temperature drops below 0°C (32°F). However, while a low-temp cut-off prevents damage, it also leaves you without solar charging precisely when you need winter energy replenishment the most.
2. Integrated Thermostatic Heating Pads
The modern solution is an integrated self-heating mechanism. When your solar inverter detects daylight and starts producing power, the energy is first routed to internal PTC silicone heating pads. The heating system warms the internal cells to a safe charging temperature (typically +5°C / 41°F). Once reached, the BMS automatically redirects full solar charging current into the cells. No solar power is wasted, and the battery remains 100% protected.
Engineered for Winter: The 16kWh 51.2V 314Ah Heated Battery Pack
For homeowners and installers looking for a turnkey, high-capacity solution that eliminates winter freezing anxieties, Deligreen provides a purpose-built home energy storage system:

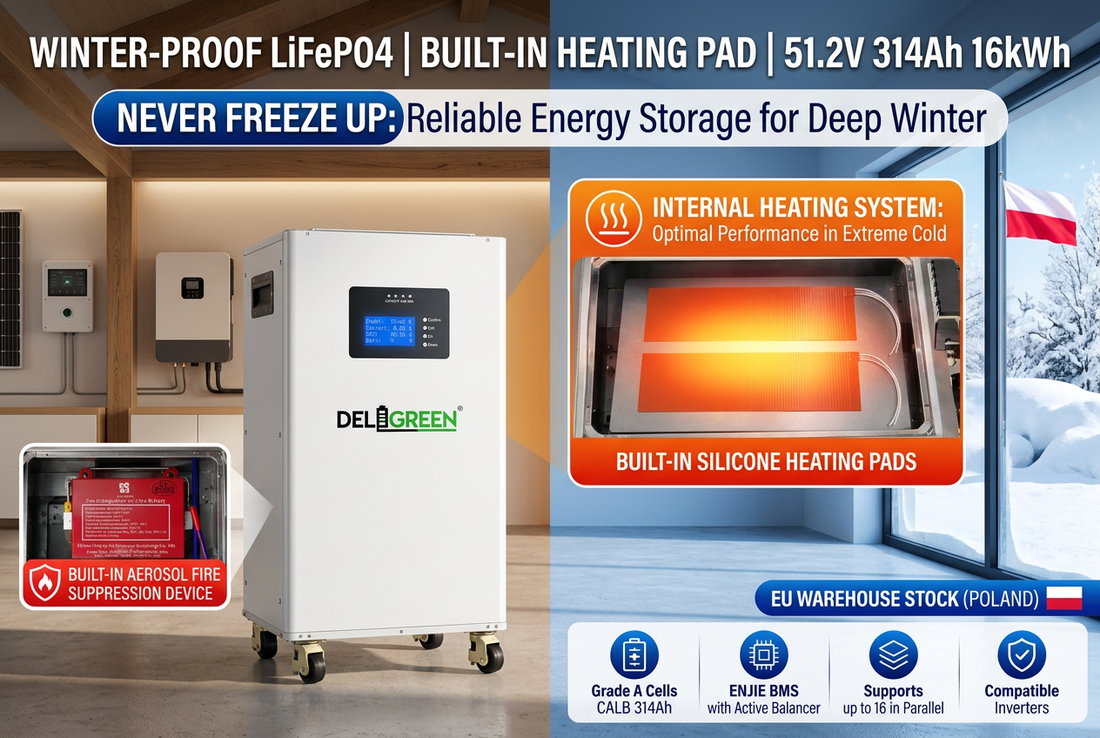

EU Stock 16kWh 51.2V 314Ah LiFePO4 Battery Pack with Heating Pad & Fire Extinguisher
- Built-in Silicone Heating Pad: Automatically conditions cells before charging in freezing conditions, making outdoor or unheated garage installations hassle-free.
- Next-Gen 314Ah High-Capacity Cells: 16S Grade A prismatic cells offering over 16kWh of usable capacity in a compact form factor.
- 200A Smart BMS with 2A Active Balancer: Delivers true closed-loop inverter communication (CAN / RS485 compatible with Deye, Victron, Growatt, GoodWe, and more) with continuous cell balancing.
- Built-in Aerosol Fire Extinguisher: Secondary passive fire suppression for complete peace of mind in residential utility spaces.
- Poland Warehouse Stock: Dispatched directly from Europe with zero customs hassle and expedited delivery.
Essential Winter Checklist for Battery Owners
- Verify Sensor Placement: Ensure your BMS temperature sensor measures cell core temperature, not ambient cabinet air.
- Audit Inverter Cut-Off Settings: Double-check that your inverter and charge controller respect low-temperature charging limits.
- Maintain 40%–60% SOC for Dormant Storage: If shutting down an off-grid cabin for the season, charge to roughly 50% SOC and disconnect all parasitic loads.
- Upgrade to Active Heating: If your system lives in an unconditioned workshop or garage, install integrated heating to avoid locked-out solar generation on cold sunny days.
